Repairing BCM?
Re: Repairing BCM?
Re: Repairing BCM?

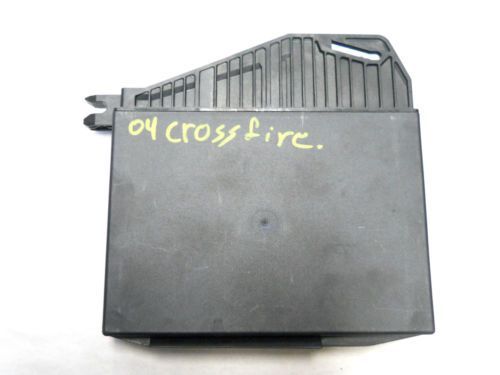

I finally decided to take appart my Bcm that was bad.. Figured I would open it and see if there was any signs of issues.. And boy was it obvious.. Here is a picture of the issue with it...
Has anyone ever fixed these types of blown traces on these bcm's before?
Does anyone have a schematic diagram of this printed circuit board in order to see where each pin is intended to go and also see how many layers this board is?
Has anyone ever fixed these types of blown traces on these bcm's before?
Does anyone have a schematic diagram of this printed circuit board in order to see where each pin is intended to go and also see how many layers this board is?
Re: Repairing BCM?
I am trying to fix a couple of problems with my '05 (convertible top not working & no cruise control). I took it to the dealer and they had it for about a month and after changing the PTCM they told me they thought the BCM might be the problem. I have it out and have opened it up and it appears as though there may be some solder issues much like I had with a "Mystery No-Start" problem. Does anyone have any experience with like issues in the BCM?
Join Date: Jun 2009
Location: Fort Worth, Texas
Age: 64
Posts: 13,455
Received 884 Likes
on
689 Posts
Re: Repairing BCM?
I am trying to fix a couple of problems with my '05 (convertible top not working & no cruise control). I took it to the dealer and they had it for about a month and after changing the PTCM they told me they thought the BCM might be the problem. I have it out and have opened it up and it appears as though there may be some solder issues much like I had with a "Mystery No-Start" problem. Does anyone have any experience with like issues in the BCM?
2) They changed the PTCM and still dont know what to do - for a TOP not working and no cruise control? That is not just sad, it is pathetic.
3) No, Iv'e been on here since 2009 and am on my third Roaster, never have I seen any indication of such an issue with the BCM. Largely , the BCM is SMT techhnology, so "solder issues" are not likely. Of course, if you SEE fractured joints (probably around the pins of the connectors that the cables plug into) hten by all means reflow them. Just be DAMN careful you don't bridge paths.
4) The Cruise is entirely within the PTCM, cept for maybe the wheel speed sensors and, of course, the multi function switch.
5) Top issues are usually NOT that hard to diagnose. Most often, they are caused by the sensors (which are really just spst switches) in the top frame and divider catch.
6) Thinking that the two issues are caused by the same module may be why it is not fixed. I am trying to think of ANYTHING in the car that would, by itself, disable the top and cruise control. I got nothing.
"No cruise control" is pretty simple to interpret, but "top not working" does not tell us enough to give you any advice. Do the windows go down when you release the D handle and push the top up away from the windshield frame? Do you get a 'beep' when you do so? Or, do you get a beep only when you press the button to move the top? Do you have any issues moving the top manually? Provide some more information and maybe we can help.
Last edited by pizzaguy; 07-11-2016 at 09:10 PM.
Re: Repairing BCM?
1) About a month at the dealership. That is just beyond sad.
2) They changed the PTCM and still dont know what to do - for a TOP not working and no cruise control? That is not just sad, it is pathetic.
3) No, Iv'e been on here since 2009 and am on my third Roaster, never have I seen any indication of such an issue with the BCM. Largely , the BCM is SMT techhnology, so "solder issues" are not likely. Of course, if you SEE fractured joints (probably around the pins of the connectors that the cables plug into) hten by all means reflow them. Just be DAMN careful you don't bridge paths.
4) The Cruise is entirely within the PTCM, cept for maybe the wheel speed sensors and, of course, the multi function switch.
5) Top issues are usually NOT that hard to diagnose. Most often, they are caused by the sensors (which are really just spst switches) in the top frame and divider catch.
6) Thinking that the two issues are caused by the same module may be why it is not fixed. I am trying to think of ANYTHING in the car that would, by itself, disable the top and cruise control. I got nothing.
"No cruise control" is pretty simple to interpret, but "top not working" does not tell us enough to give you any advice. Do the windows go down when you release the D handle and push the top up away from the windshield frame? Do you get a 'beep' when you do so? Or, do you get a beep only when you press the button to move the top? Do you have any issues moving the top manually? Provide some more information and maybe we can help.
Manual Crossfire Roadster Convertible Top Operation - YouTube
2) They changed the PTCM and still dont know what to do - for a TOP not working and no cruise control? That is not just sad, it is pathetic.
3) No, Iv'e been on here since 2009 and am on my third Roaster, never have I seen any indication of such an issue with the BCM. Largely , the BCM is SMT techhnology, so "solder issues" are not likely. Of course, if you SEE fractured joints (probably around the pins of the connectors that the cables plug into) hten by all means reflow them. Just be DAMN careful you don't bridge paths.
4) The Cruise is entirely within the PTCM, cept for maybe the wheel speed sensors and, of course, the multi function switch.
5) Top issues are usually NOT that hard to diagnose. Most often, they are caused by the sensors (which are really just spst switches) in the top frame and divider catch.
6) Thinking that the two issues are caused by the same module may be why it is not fixed. I am trying to think of ANYTHING in the car that would, by itself, disable the top and cruise control. I got nothing.
"No cruise control" is pretty simple to interpret, but "top not working" does not tell us enough to give you any advice. Do the windows go down when you release the D handle and push the top up away from the windshield frame? Do you get a 'beep' when you do so? Or, do you get a beep only when you press the button to move the top? Do you have any issues moving the top manually? Provide some more information and maybe we can help.
Manual Crossfire Roadster Convertible Top Operation - YouTube
Manual tranny cars have had speed control problems due to the clutch pedal switch if I recall correctly.
