How to make your own low profile car ramps
Re: How to make your own low profile car ramps

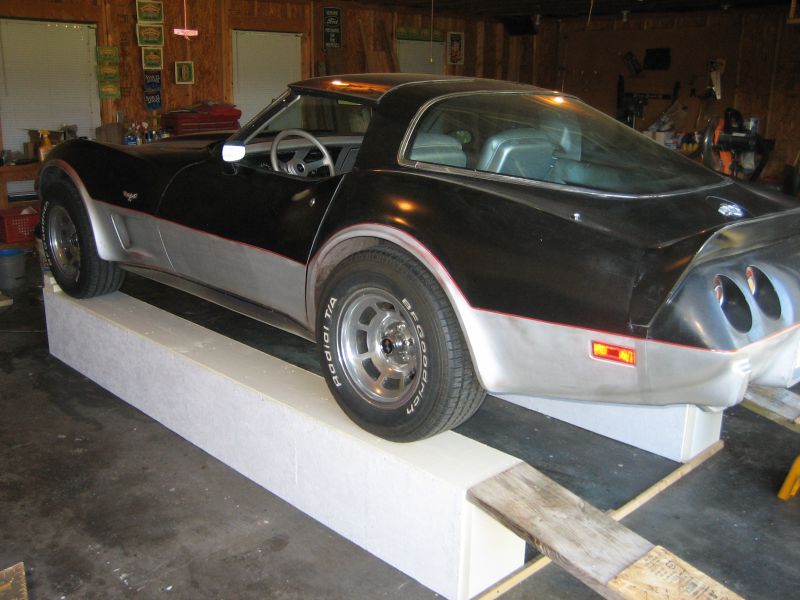

Glenn's ramps.

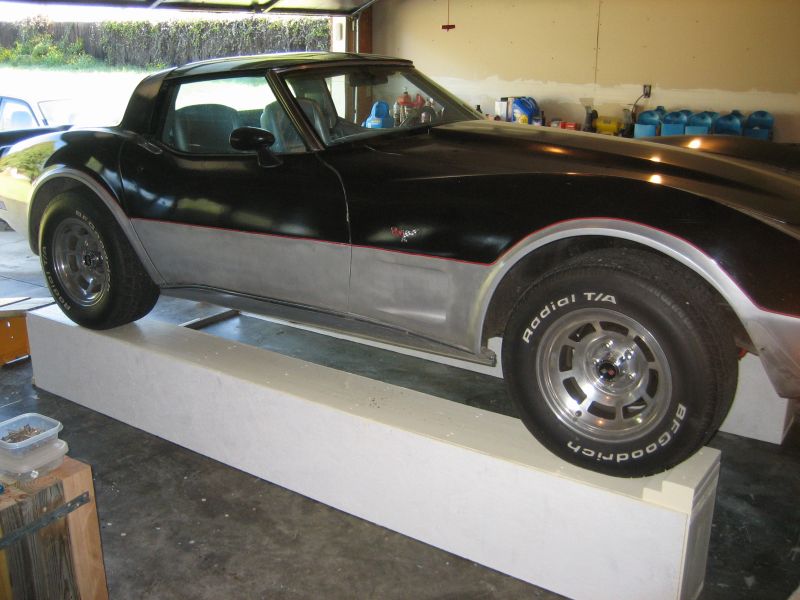

Glenn's setup for getting his car up on the ramps.
Shel Myers from British Columbia made a few modifications to better suit his particular use. The ramps have pot lights installed (three on one ramp, two on the other), which allow each lamp to pivot and swivel in order to place light where it is needed. Each ramp has a switch to control each set of lights. The drivers side ramp has a built-in extension cord and power outlet so power tools can be used while working under the vehicle. Shel also made the actual 'ramp' portions with vertical oriented 2 x 6 in order to allow a vehicle to drive on without the need for additional supports. Shel also decided to make his ramps a full 12" wide using 2 x 6 lumber to do it since it was far cheaper and allows for easier rebuilding if one section fails or is otherwise rendered unusable. Shel also left two openings between studs unsheeted on the inside of each ramp to allow for tool and parts storage which proves to be very handy. View the pictures below:
Re: How to make your own low profile car ramps
Me I have a couple of lifts, but I used to use the curb on a dead end street.
I really dont like the high vett wood ramps, they have no bracing to keep them from skewing sideways, and thats dangerous. The ends should be braced by at least a 2x8 or more or else the box can slip if you move the steering or when your loading. Braces are cheap and then you could have one side UNBOLT to allow side access; as the wheels are now self anchoring, side to side.
Ever try to ride up the one piece metal ramps and have them slip and get out of alignment?? After I put up with that, I got a lift at my shop for maintenence of the fleet and one lift for the home toy garage.
BEEEEE safe, life is already short - like toooo short. Woody
https://www.crossfireforum.org/galle...e_hood_015.JPG
I really dont like the high vett wood ramps, they have no bracing to keep them from skewing sideways, and thats dangerous. The ends should be braced by at least a 2x8 or more or else the box can slip if you move the steering or when your loading. Braces are cheap and then you could have one side UNBOLT to allow side access; as the wheels are now self anchoring, side to side.
Ever try to ride up the one piece metal ramps and have them slip and get out of alignment?? After I put up with that, I got a lift at my shop for maintenence of the fleet and one lift for the home toy garage.
BEEEEE safe, life is already short - like toooo short. Woody
https://www.crossfireforum.org/galle...e_hood_015.JPG
Last edited by waldig; 08-26-2010 at 04:48 PM.
Join Date: Apr 2007
Location: So Cal
Posts: 3,217
Likes: 0
Received 0 Likes
on
0 Posts
Re: How to make your own low profile car ramps
Last edited by BrianBrave; 08-26-2010 at 09:45 PM.
Re: How to make your own low profile car ramps
Those $2500 ramps are for stuffing in your trailer so you can work on the car while far from home.
I totally agree though, $2500 is stupid. If you really wanted ramps like that for your race tour, you could build them yourself cheaper. Sure they'd be heavier (solid wood is heavy) but you can get a lot of wood for $2500.
I totally agree though, $2500 is stupid. If you really wanted ramps like that for your race tour, you could build them yourself cheaper. Sure they'd be heavier (solid wood is heavy) but you can get a lot of wood for $2500.
Re: How to make your own low profile car ramps
I was just kicking this idea around, and it seemed to me that 18 inches for each riser was too long. You could tighten that up, increasing the angle of the rise while still not scraping your car on the ramp.
I would like to get 12 inches of height out of my ramps. Since 2 X 10's are actually 1.5 inches thick (approx), you need eight of them. To get an angle of about 10 or 11 degrees for the ramp, each board needs to be 8 inches longer than the one above it.
Top board: 24" long (2'-0")
Second: 32" (2'-8")
Third: 40" (3'-4")
Fourth: 48" (4'-0")
Fifth: 56" (4'-8")
Sixth: 64" (5'-4")
Seventh: 72" (6'-0")
Eighth: 80" (6'-8")
That makes the ramps almost seven feet long, but a 12" rise on them would make working under there much easier.
I would like to get 12 inches of height out of my ramps. Since 2 X 10's are actually 1.5 inches thick (approx), you need eight of them. To get an angle of about 10 or 11 degrees for the ramp, each board needs to be 8 inches longer than the one above it.
Top board: 24" long (2'-0")
Second: 32" (2'-8")
Third: 40" (3'-4")
Fourth: 48" (4'-0")
Fifth: 56" (4'-8")
Sixth: 64" (5'-4")
Seventh: 72" (6'-0")
Eighth: 80" (6'-8")
That makes the ramps almost seven feet long, but a 12" rise on them would make working under there much easier.
Senior Member
Re: How to make your own low profile car ramps
Re: How to make your own low profile car ramps
My dad was recently crushed to death because of homemade ramps my uncle made. I don't understand how this could happen. I'm a girl and know nothing about cars, although I wish I knew the answer to this haunting question. People please be careful. You would never want to put your family through this.
Re: How to make your own low profile car ramps
Originally Posted by podgorske3
My dad was recently crushed to death because of homemade ramps my uncle made. I don't understand how this could happen. I'm a girl and know nothing about cars, although I wish I knew the answer to this haunting question. People please be careful. You would never want to put your family through this.
This should be a good warning to all of us DIY mechanics. Tragic circumstances can and do happen. I personally would never get under a car that is not fully supported on load tested and certified axle stands. I also put a spare wheel and chocks of wood under the car subframe for additional security.
Join Date: Sep 2007
Location: UK Crossfires Club
Posts: 1,689
Likes: 0
Received 0 Likes
on
0 Posts
Re: How to make your own low profile car ramps
Originally Posted by podgorske3
My dad was recently crushed to death because of homemade ramps my uncle made. I don't understand how this could happen. I'm a girl and know nothing about cars, although I wish I knew the answer to this haunting question. People please be careful. You would never want to put your family through this.
So sorry to hear your sad news, many people have been injured, and worse, with DIY made car ramps and lifting gear. Good quality steel ramps are cheap enough to buy, but us guys just like making things. That's cool, but soo much care is needed where personal safety is concerned.
Re: How to make your own low profile car ramps
I have been identifying the risks in suck ramps because they can slid out of position and parallelogram collapsing in the process.
The vet on the ramp would really require two focused people to get up the BOARD and not fall off. Strong enough to stand on but were looking at 20 stout peoples weight in most cases.
Like I said I used to use a curb on a dead end street.
Woody
The vet on the ramp would really require two focused people to get up the BOARD and not fall off. Strong enough to stand on but were looking at 20 stout peoples weight in most cases.
Like I said I used to use a curb on a dead end street.
Woody
Senior Member
SSB SRT6 405hp/401Tq
Re: How to make your own low profile car ramps
Originally Posted by onehundred80
This one shows imagination.
Headroom? No problem, find a higher drop.
It could easily be copied with two planks, two stepladders and one idiot.
Don't do this at home folks.
Headroom? No problem, find a higher drop.
It could easily be copied with two planks, two stepladders and one idiot.
Don't do this at home folks.
It's hard to see in the picture but do you think he sent his wife under there to fix the car?
