Smile Do it yourself DIY Belt Wrap Kit for less than $25

There's been some interest in my DIY Belt Wrap kit so here goes.

PARTS LIST

1 - Idler Pulley, NP 1202000470 (same as supercharger idler pulley)
  • $10.30 at Rock auto.com LINK shipping is about $10 also????
1 - M8-1.25 bolt, 75MM long
  • $0.99 at ACE Hardware
1 - M8-1.25 nylon locking nut
  • $0.45 at ACE Hardware
1 - Spare washer laying around the garage
  • FREE
__________________________________________________ _______
PROCESS

1. Release tension on the belt.
2. Remove the supercharger idler pulley including the bracket.

3. Route the belt under the pulley and reinstall pulley and bracket.
4. Put washer on new bolt, slide bolt through new pulley and mount it in the existing hole just above the upper alternator bolt.
5. Attach nut and tighten. May be tricky due to clearance. I used a magnet to hold the nut in place to get it started.

6. Route belt over this pulley.

7. Reapply tension to the belt.

8. Check everything first then start car and check everything again.

9. TAA-DAA!!! (as Professor Woody would say) yer done!

__________________________________________________ _________________

I've had this on for over 700 miles so far and it WORKS! Yes you may see lines on the flat side of the belt where the belt rides on the ribbed side of the pulley but it is NOT wearing into the belt.
If someone can come up with a part number for a smooth pulley that would be GREAT! I used what I had on hand thus the ribbed pulley.

NOTE: This install works with MY combination of the Code 3 pulley and the 181 Crank pulley using the stock length belt. Your application may require a longer or shorter belt. Works perfect for my application. Not responsible for damage, loss of life or limb, for off road use only, ya-da, ya-da, ya-da.

Saves ya about $175 worth a try. Hope it works for you!

Last edited by tighed1; 05-09-2009 at 07:10 PM.
Reply With Quote
  #2 (permalink)
Old 05-09-2009, 01:21 PM
tighed1's Avatar
Senior Member
Thread Starter

Join Date: Aug 2008
Location: Sierra Vista, Arizona
Age: 60
Posts: 5,386
Default Re: Do it yerself DIY Belt Wrap Kit for less than $25

Remove pulley and bracket. Route belt UNDER the pulley and reinstall.

.

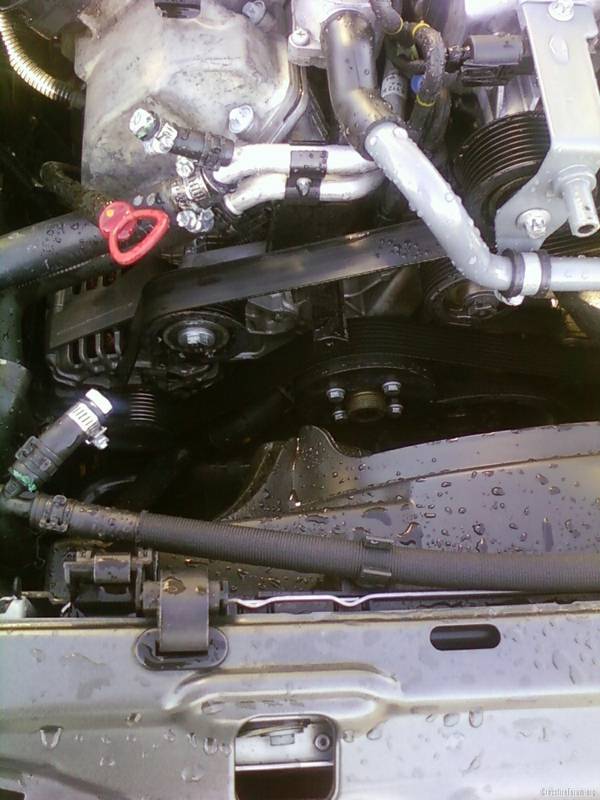

Mount new pulley in hole above alternator. Retension belt and it should look like this when done.


Last edited by tighed1; 05-09-2009 at 01:40 PM.
Reply With Quote
  #3 (permalink)
Old 05-09-2009, 01:23 PM
ProjectMayhem's Avatar
Forum Regular

Join Date: Apr 2008
Location: St. Louis, MO
Age: 34
Posts: 888
Default Re: Do it yerself DIY Belt Wrap Kit for less than $25

Notice any more boost?
Reply With Quote
  #4 (permalink)
Old 05-09-2009, 01:29 PM
tighed1's Avatar
Senior Member
Thread Starter

Join Date: Aug 2008
Location: Sierra Vista, Arizona
Age: 60
Posts: 5,386
Default Re: Do it yerself DIY Belt Wrap Kit for less than $25

YEP! Noticed I didn't have slipping belt anymore! Sucked to be boostin' then watch the boost drop off cuz the belt wuz slippin'.

Dyno of the belt wrap kit showed gains of 7 - 10 whp and torque (done by one of our friendy vendors)
Reply With Quote
  #5 (permalink)
Old 05-09-2009, 01:33 PM
Senior Member

Join Date: Feb 2008
Posts: 3,668
Default Re: Do it yerself DIY Belt Wrap Kit for less than $25

wow that is simple as can be, good stuff man.

what length bolt did you use, in your writeup you just say it is MM long.

I found several "ebay" pulleys that are smooth not grooved that may work.

Thanks for the info though, I am going to do mine!

What is the size of the idler pulley you used? If you have that then it shouldn't be too difficult to find a smooth pulley somewhere.

also, can you circle the pulley you removed then circle the pulle/bracket you replaced it with so it is clearer what you moved/replaced?

Last edited by mrphotoman; 05-09-2009 at 01:36 PM.
Reply With Quote
  #6 (permalink)
Old 05-09-2009, 01:35 PM
tighed1's Avatar
Senior Member
Thread Starter

Join Date: Aug 2008
Location: Sierra Vista, Arizona
Age: 60
Posts: 5,386
Default Re: Do it yerself DIY Belt Wrap Kit for less than $25

Thanks "P" man.
Fixed it.

75mm
Reply With Quote
  #7 (permalink)
Old 05-09-2009, 01:51 PM
tighed1's Avatar
Senior Member
Thread Starter

Join Date: Aug 2008
Location: Sierra Vista, Arizona
Age: 60
Posts: 5,386
Default Re: Do it yerself DIY Belt Wrap Kit for less than $25

Quote:
Originally Posted by mrphotoman
also, can you circle the pulley you removed then circle the pulle/bracket you replaced it with so it is clearer what you moved/replaced?
Pulley on the left is the added pulley. Pulley on the right is the existing idler pulley and bracket that gets removed and reinstalled after routing the belt under the pulley.

Reply With Quote
  #8 (permalink)
Old 05-09-2009, 01:52 PM
Senior Member

Join Date: Feb 2008
Posts: 3,668
Default Re: Do it yerself DIY Belt Wrap Kit for less than $25

Quote:
Originally Posted by tighed1
Thanks "P" man.
Fixed it.

75mm
I used a larger idler pulley to keep the tension tight on mine, it feels really tight and i did not datalog any belt slip with it so i may not change anything for now.

i just ran out and looked under the hood and i do see how well your fix would work. i am not sure if i need to swap mine but i grabbed my stock one out of the garage and will take it to the part store today to see if i can find a smaller smooth pulley that will work. if i do i will be sure to post up the part number and price for it.

thanks
Reply With Quote
  #9 (permalink)
Old 05-09-2009, 01:58 PM
tighed1's Avatar
Senior Member
Thread Starter

Join Date: Aug 2008
Location: Sierra Vista, Arizona
Age: 60
Posts: 5,386
Default Re: Do it yerself DIY Belt Wrap Kit for less than $25

Quote:
Originally Posted by mrphotoman
i just ran out and looked under the hood and i do see how well your fix would work. i am not sure if i need to swap mine but i grabbed my stock one out of the garage and will take it to the part store today to see if i can find a smaller smooth pulley that will work. if i do i will be sure to post up the part number and price for it.
thanks
Hope you can find a part number to put folks minds at ease. Some will worry bout the ribs hurting the belt. So far I have not seen any wear.
I went through every pulley box at the local Autozone and could not find a similar smooth pulley.
Reply With Quote
  #10 (permalink)
Old 05-09-2009, 02:06 PM
Senior Member

Join Date: Feb 2008
Posts: 3,668
Default Re: Do it yerself DIY Belt Wrap Kit for less than $25

i do not see how it would hurt the belt either but i will see what i can find.

on the extra pulley you bolted on, without going outside again (im lazy lol) is there a stock pulley there or is there just an empty bolt hole that you stuck the spare pulley on?

also, you have the much smaller than stock idler pulley since you have the crank pulley so i assume the code3 guys will need to buy 2 pulleys (which is no big deal) to do this mod or the belt will rub up against itself due to the larger idler pulley

Thanks


Quote:
Originally Posted by tighed1
Hope you can find a part number to put folks minds at ease. Some will worry bout the ribs hurting the belt. So far I have not seen any wear.
I went through every pulley box at the local Autozone and could not find a similar smooth pulley.

Last edited by mrphotoman; 05-09-2009 at 02:08 PM.
Reply With Quote
  #11 (permalink)
Old 05-09-2009, 02:08 PM
tighed1's Avatar
Senior Member
Thread Starter

Join Date: Aug 2008
Location: Sierra Vista, Arizona
Age: 60
Posts: 5,386
Default Re: Do it yerself DIY Belt Wrap Kit for less than $25

Quote:
Originally Posted by mrphotoman
on the extra pulley you bolted on, without going outside again (im lazy lol) is there a stock pulley there or is there just an empty bolt hole that you stuck the spare pulley on?

Thanks
STEP #4>>>>
Reply With Quote
  #12 (permalink)
Old 05-09-2009, 02:30 PM
waldig's Avatar
Senior Member

Join Date: Feb 2008
Location: VA
Posts: 4,104
Talking Re: Do it yerself DIY Belt Wrap Kit for less than $25

Our standard pulleys are 17mm id bore. THe grooved idler is a 10 mm hole so if you get a smooth pulley you need to be aware of the inner diameter of the mounting hole and bolt. Woody WEEKEND>>>>>>>>>>>>>>>>>>>>>>>yeah Woody again.....
Reply With Quote
  #13 (permalink)
Old 05-09-2009, 03:43 PM
Senior Member

Join Date: Feb 2008
Posts: 3,668
Default Re: Do it yerself DIY Belt Wrap Kit for less than $25

Quote:
Originally Posted by tighed1
STEP #4>>>>

lol i guess you can see i didnt read it all!
Reply With Quote
  #14 (permalink)
Old 05-09-2009, 04:58 PM
MikeR's Avatar
Senior Member

Join Date: Jan 2008
Location: North Plains, OR
Age: 67
Posts: 5,173
Default Re: Do it yerself DIY Belt Wrap Kit for less than $25

Tighed1,
Is that bolt an M8-1.25x75mm?

MikeR
Reply With Quote
  #15 (permalink)
Old 05-09-2009, 05:25 PM
Senior Member

Join Date: Nov 2007
Posts: 1,225
Default Re: Do it yerself DIY Belt Wrap Kit for less than $25

Good stuff Tighed. You still got any supercoolers for sale? People should be jumping on those.
Reply With Quote
  #16 (permalink)
Old 05-09-2009, 07:12 PM
tighed1's Avatar
Senior Member
Thread Starter

Join Date: Aug 2008
Location: Sierra Vista, Arizona
Age: 60
Posts: 5,386
Default Re: Do it yerself DIY Belt Wrap Kit for less than $25

Quote:
Originally Posted by MikeR
Tighed1,
Is that bolt an M8-1.25x75mm?

MikeR
Yep! Fixed that too.
Fired my prrof reader!
Reply With Quote
  #17 (permalink)
Old 05-09-2009, 07:47 PM
velociabstract's Avatar
Senior Member

Join Date: Jul 2008
Location: Puerto Rico
Posts: 4,358
Default Re: Do it yerself DIY Belt Wrap Kit for less than $25

I may give this a try. Can't hurt and sure could help. Could you grab your serpentine belt after a run and let me know how hot it is? Mine is too hot to hold on to. (slip or no slip confirmation)

Les
Reply With Quote
  #18 (permalink)
Old 05-09-2009, 08:55 PM
oledoc2u's Avatar
Retired LEO

Join Date: Mar 2008
Location: IN
Age: 63
Posts: 14,433
Default Re: Do it yerself DIY Belt Wrap Kit for less than $25

now this is good stuff, thanks man, this is a must do....
Reply With Quote
  #19 (permalink)
Old 05-09-2009, 10:22 PM
tighed1's Avatar
Senior Member
Thread Starter

Join Date: Aug 2008
Location: Sierra Vista, Arizona
Age: 60
Posts: 5,386
Default Re: Do it yerself DIY Belt Wrap Kit for less than $25

Somebody please post how well this works using the various pulley setups.
Like I said on my setup it's perfect.
Reply With Quote
  #20 (permalink)
Old 05-10-2009, 12:58 AM
Forum Regular

Join Date: Dec 2007
Posts: 543
Default Re: Do it yerself DIY Belt Wrap Kit for less than $25

I am curious to the tension on that extra bolt/ aluminum mounting point of your new pulley.

Great deal though forsure! I refused to spend over $100 on some pulleys.

Last edited by ACRucrazy; 05-10-2009 at 01:03 AM.
