Crossfire SRT6 A place to discuss SRT-6 specific topics.
View Poll Results: Thoughts on the SRT grille emblem
I like it
52
85.25%
Not my cup of tea
9
14.75%
Voters: 61. You may not vote on this poll

"SRT" Grille Emblem

Thread Tools

  #21 (permalink)
Old 06-18-2009, 10:06 AM
amx1397's Avatar
Senior Member
Join Date: Apr 2008
Location: Indialantic Fl.
Posts: 6,362
Likes: 0
Received 202 Likes on 153 Posts
Default Re: "SRT" Grille Emblem

like it a lot sent u a pm about two sided tape,, i will do mine with the tape and see how it goes, thanks fot the info and idea. jim

  #22 (permalink)
Old 06-18-2009, 10:29 AM
RPM's Avatar
RPM
RPM is offline
Moderator
Join Date: Jan 2007
Location: Mid-Michigan
Posts: 3,063
Likes: 0
Received 0 Likes on 0 Posts
Default Re: "SRT" Grille Emblem

I'll try to upload some pics today. I did not take step by step install pics, but I can write up a detailed instruction doc if needed.

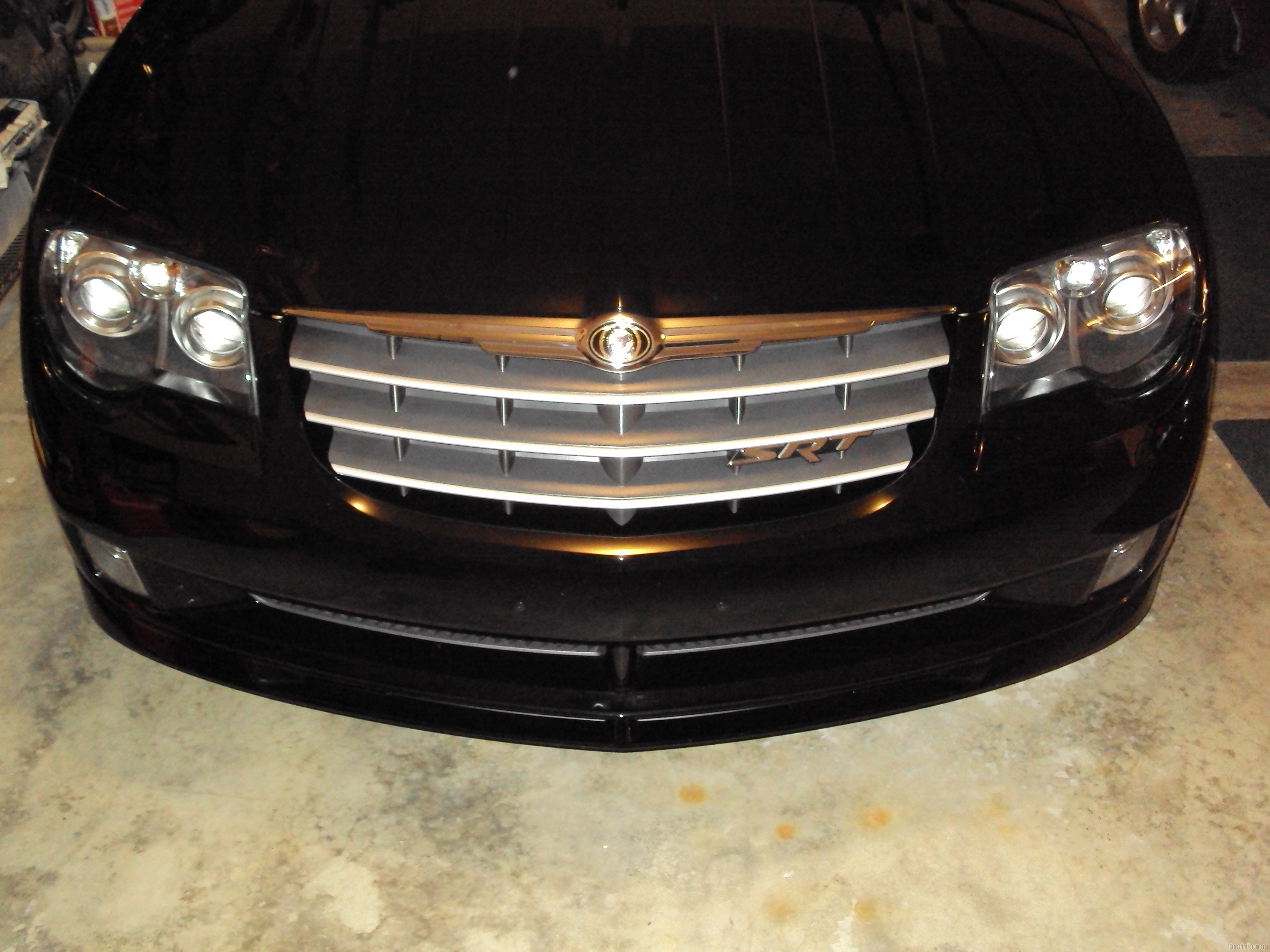

From the front, it looks exactly like Gator's - same placement, etc.
The difference is that instead of adhesive, I affixed it with removable tape. I don't like to do anything to the car that I can't easily undo.

  #23 (permalink)
Old 06-18-2009, 10:39 AM
ZAHANMA's Avatar
Senior Member
Join Date: Mar 2008
Location: Houston in my blood, and under my tires...
Age: 39
Posts: 4,535
Likes: 0
Received 1 Like on 1 Post
Default Re: "SRT" Grille Emblem

Originally Posted by RPM
I don't like to do anything to the car that I can't easily undo.
I am the same way...that's why yours intrigued me

...and I don't want to cut my grille in anyway...

  #24 (permalink)
Old 06-18-2009, 12:51 PM
RPM's Avatar
RPM
RPM is offline
Moderator
Join Date: Jan 2007
Location: Mid-Michigan
Posts: 3,063
Likes: 0
Received 0 Likes on 0 Posts
Post Re: "SRT" Grille Emblem

Quick how to and some pics of how I did it:

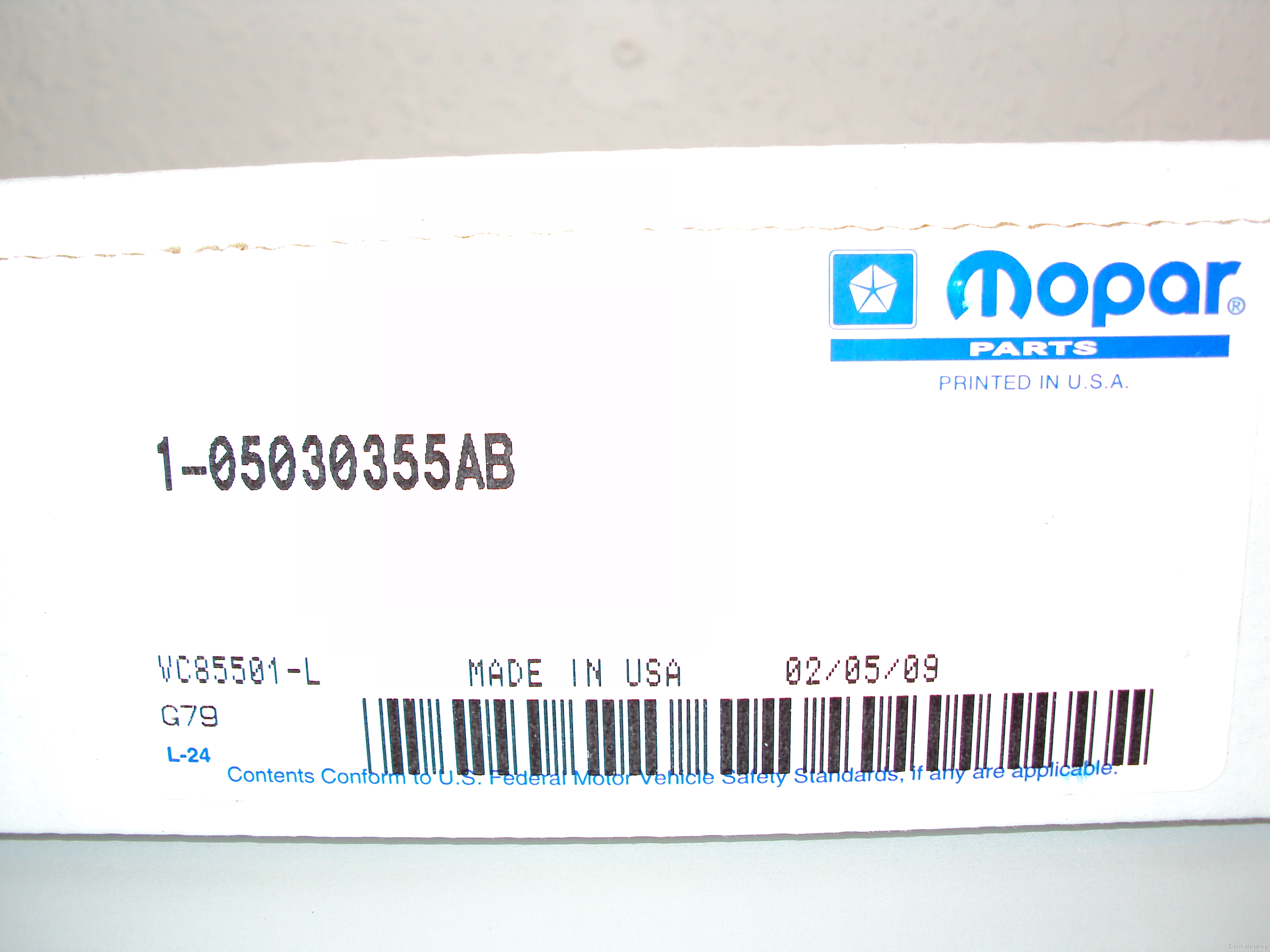

1. Order the emblem that is made for the Charger SRT, Challenger SRT, etc. (check with member sowardcustoms or eBay).
2. Break off or cut off the four tabs on the back of the emblem.
3. Use masking or painters tape to cover all of the parts you do not want coated.

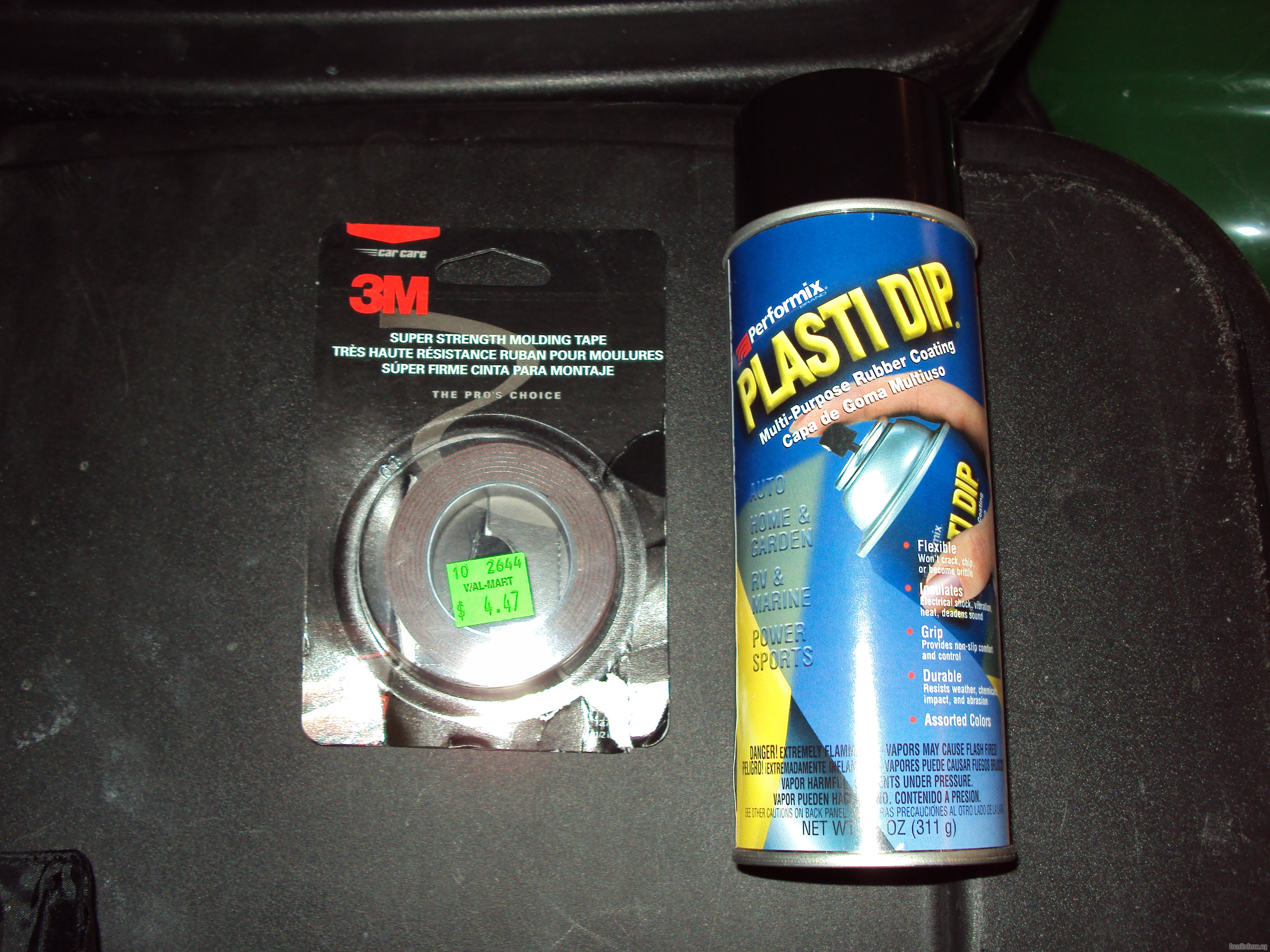

4. Spray the back, sides, top, and bottom of the emblem with Plasti-Dip black spray (Home Depot has it) and let it dry. This will just keep the emblem from scratching the grill if any rubbing occurs.
5. Remove the front grill. Clean the slats that you want the emblem to mount to and the back of the dry emblem with rubbing alcohol or some sort of cleaner/adhesive promoter.
6. Adhere some of the 3M double sided foam super strength auto molding tape (Wal-Mart, Advance, etc. has it) to the back of the emblem where it will mount to the slats. Hold some firm pressure on it for a good while. I used little pressure clamps.

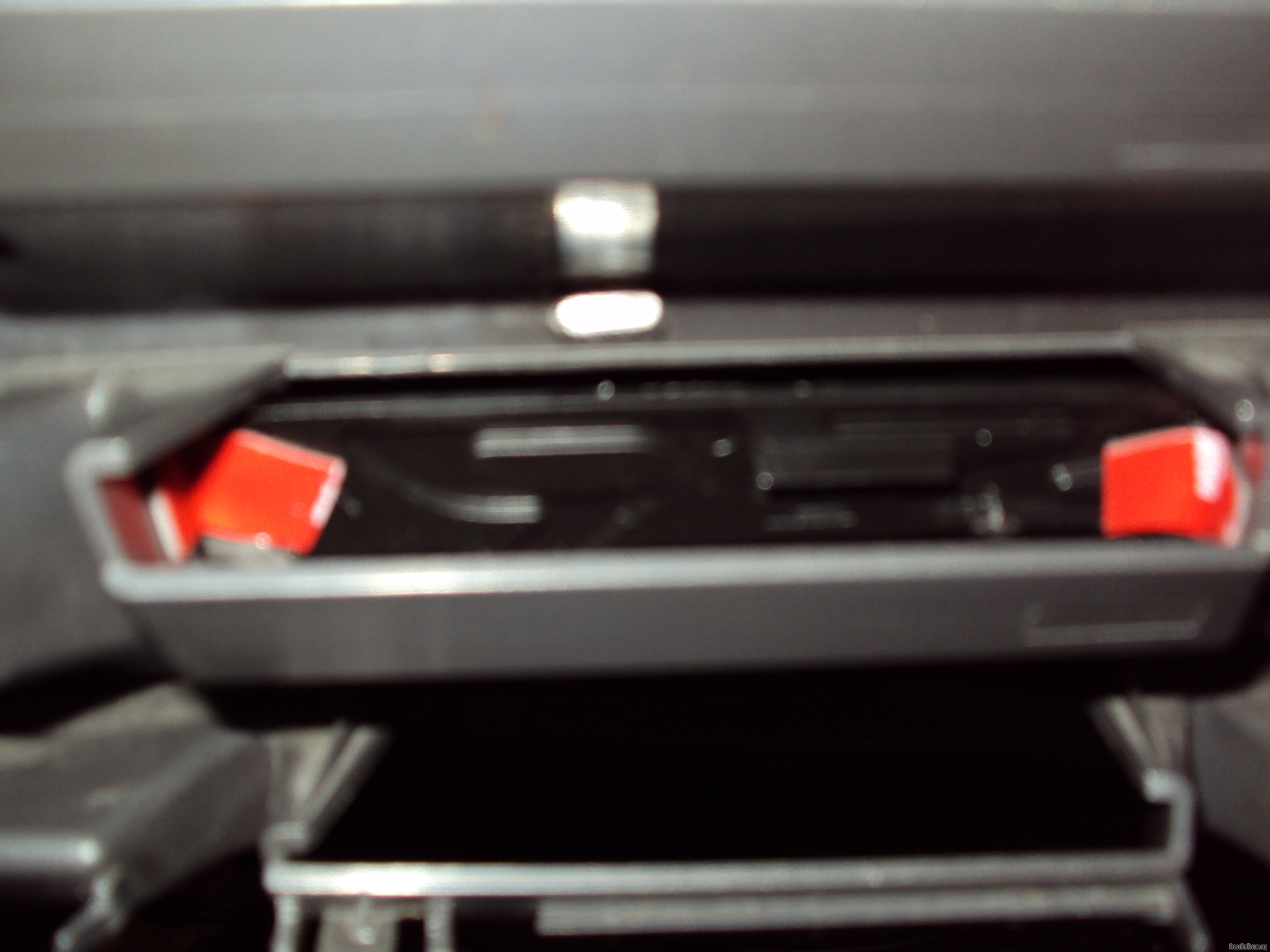

7. Peel the red backing off of the back side of the tape and stick the emblem on the grill. I used clamps to hold it tightly for a couple of hours or so.
8. Once I removed the clamps, I added two other bits of the tape as extra security from the back of the emblem to the side of each slat. Hold some pressure for a while to get good adhesion.
9. Check the emblem to make sure it is secure.
10. Reinstall grill and realize that it fits and looks great while questioning why the 300C SRT8 and the SRT6 didn't have them in the first place.

I have driven mine 3 days since I put the emblem on and it has not budged. However, if you do this and yours goes flying off, don't blame me.


  #25 (permalink)
Old 06-18-2009, 01:03 PM
ZAHANMA's Avatar
Senior Member
Join Date: Mar 2008
Location: Houston in my blood, and under my tires...
Age: 39
Posts: 4,535
Likes: 0
Received 1 Like on 1 Post
Default Re: "SRT" Grille Emblem

Thanks RPM...that is a great concise write-up...

I think I may hold off...performance first...

  #26 (permalink)
Old 06-18-2009, 01:20 PM
RPM's Avatar
RPM
RPM is offline
Moderator
Join Date: Jan 2007
Location: Mid-Michigan
Posts: 3,063
Likes: 0
Received 0 Likes on 0 Posts
Default Re: "SRT" Grille Emblem

Originally Posted by ZAHANMA
Thanks RPM...that is a great concise write-up...

I think I may hold off...performance first...
+1. I agree.
In case anybody is wondering, I think the price breakdown goes something like this:
1. Emblem + S/H = ~$38.00
2. Plasti-Dip Spray = ~$8.00
3. 3M Tape = $4.47
So, for ~$50 you have a new emblem and look.

Oh, and I hear the Dan R. will do a package deal including the emblem and installation for ~$1,400.00


Last edited by RPM; 06-18-2009 at 01:22 PM.
  #27 (permalink)
Old 06-18-2009, 01:27 PM
Join Date: Aug 2008
Location: Richmond,Va.
Posts: 42
Likes: 0
Received 0 Likes on 0 Posts
Default Re: "SRT" Grille Emblem

Very nice makes it look like a SRT family member

  #28 (permalink)
Old 02-09-2018, 11:05 PM
Join Date: Dec 2017
Location: Illinois
Age: 51
Posts: 25
Likes: 0
Received 0 Likes on 0 Posts
Default Re: "SRT" Grille Emblem

Nice, trying to find a “S” and “E” in the crossfire script. Has any bought the crossfire? It’s about $120.00 for the entire script. Will pay for S and E if anyone has em.
