serpentine belt replacement
Senior Member
Joined: Apr 2006
Posts: 25,432
Likes: 647
From: Ontario
Re: serpentine belt replacement
Looks like the belt tensioner pulley is missing to me.
Senior Member
Joined: Sep 2015
Posts: 1,465
Likes: 4
From: Knoxville
Re: serpentine belt replacement
Looking at it again, it does look like it's gone.
Last edited by Steve Jr; Jan 21, 2018 at 05:51 PM.
Senior Member
Joined: Dec 2010
Posts: 12,780
Likes: 184
From: Lineville, AL
Senior Member
Joined: Apr 2006
Posts: 25,432
Likes: 647
From: Ontario
Re: serpentine belt replacement

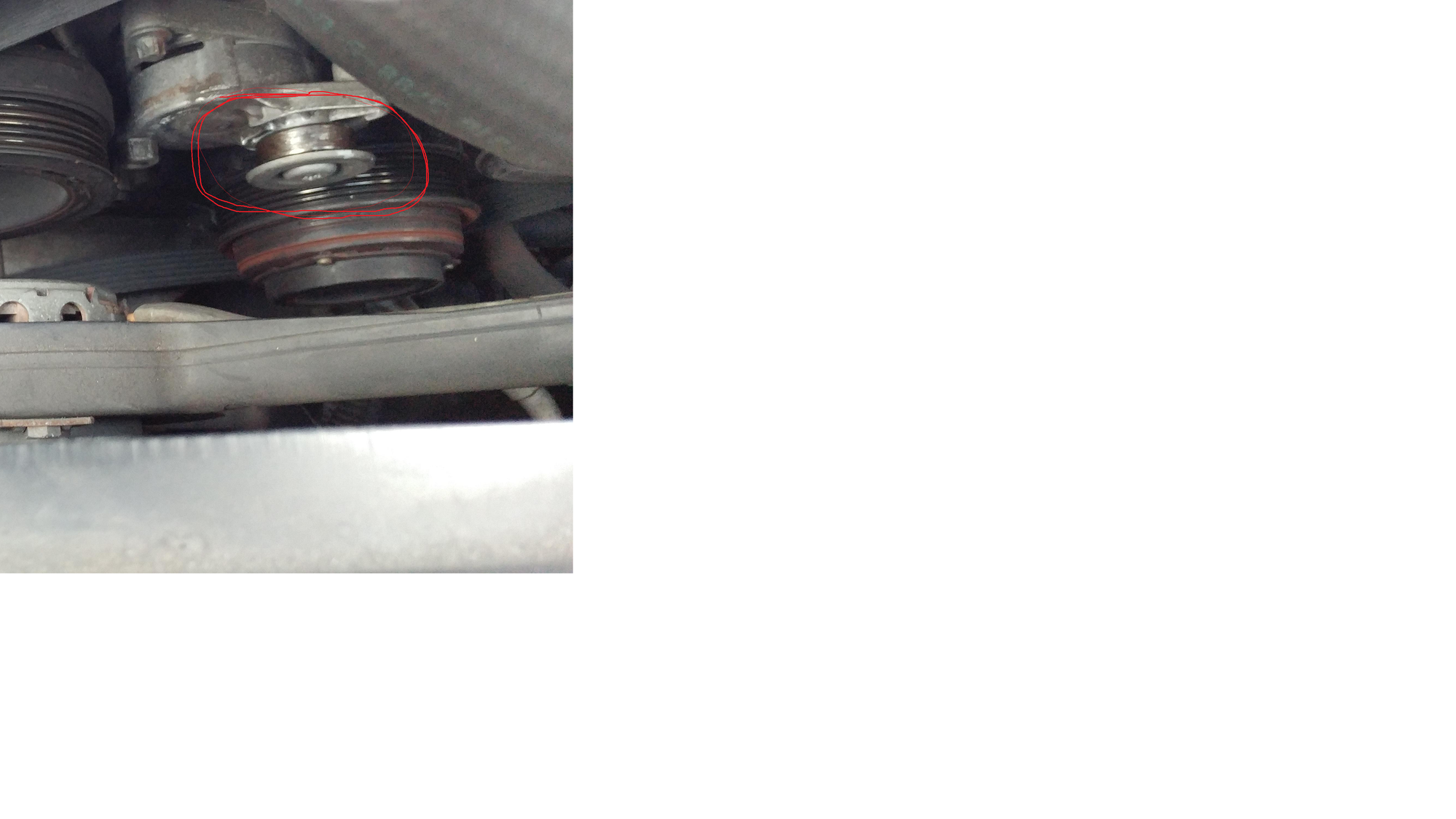

From what I see, nothing is missing. In the picture, to the right of the middle, lift the idler pulley, route the belt, release the idler pulley down (it has a heavy spring behind it) an that adds tension to keep the belt onto all the pulleys. You should have a diagram in front of the radiator of how it is to be ran.
Looking at it again, it does look like it's gone.
Looking at it again, it does look like it's gone.
Someone who shall remain nameless had a good idea, a couple of guys here got some made and sold them to people who wanted them, $5 extra to Canada.
Senior Member
Joined: Apr 2006
Posts: 25,432
Likes: 647
From: Ontario
Re: serpentine belt replacement
See post #32 for what the tensioner should look like.
Senior Member
Joined: Apr 2006
Posts: 25,432
Likes: 647
From: Ontario
Re: serpentine belt replacement
Find him the pulley, that is what is broken apart, cheaper than the whole assembly. The tensioner on my NA had a cylinder on it as well. Never did look into its reason.
Senior Member
Joined: Dec 2010
Posts: 12,780
Likes: 184
From: Lineville, AL
Re: serpentine belt replacement
Never have seen the pulley listed separately for the NA.
That cylinder is found only on the 2004's, must have been something to do with harmonics in the belt,
at any rate they dropped it in 2005-
That cylinder is found only on the 2004's, must have been something to do with harmonics in the belt,
at any rate they dropped it in 2005-
Senior Member
Joined: Apr 2006
Posts: 25,432
Likes: 647
From: Ontario
Re: serpentine belt replacement
The pulley is out there, it is mentioned on this forum.
Joined: Jun 2009
Posts: 199
Likes: 5
Re: serpentine belt replacement
Thanks everyone for the awesome replies, So if I get just the pulley how easy to replace or if I get the whole assembly what will it cost. Looking at Rock Auto for the belt tensioner pulley and all shows a grooved one not the smooth one as shown in the posts here
Senior Member
Joined: Dec 2010
Posts: 12,780
Likes: 184
From: Lineville, AL
Re: serpentine belt replacement
Once again, you are correct. Found just the pulley in Hong Kong for $10 - ordered one.
Senior Member
Joined: Apr 2006
Posts: 25,432
Likes: 647
From: Ontario
Re: serpentine belt replacement
I have some numbers but I am double checking them.
Senior Member
Joined: Dec 2010
Posts: 12,780
Likes: 184
From: Lineville, AL
Re: serpentine belt replacement
I will wait until it arrives and I can verify it is correct, then I'll post the link.
Senior Member
Joined: Apr 2006
Posts: 25,432
Likes: 647
From: Ontario
Re: serpentine belt replacement
Pulley 88mm OD x 17mm ID x 25mm wide. CLICK
Last edited by onehundred80; Jan 22, 2018 at 04:12 PM.
Senior Member
Joined: May 2008
Posts: 10,434
Likes: 144
From: Cincinnati ( Delhi )
Re: serpentine belt replacement
My fairly early 2004 does not have the cylinder...
